Starter, alternator, battery and ignition system (1.1 models since 8.85)

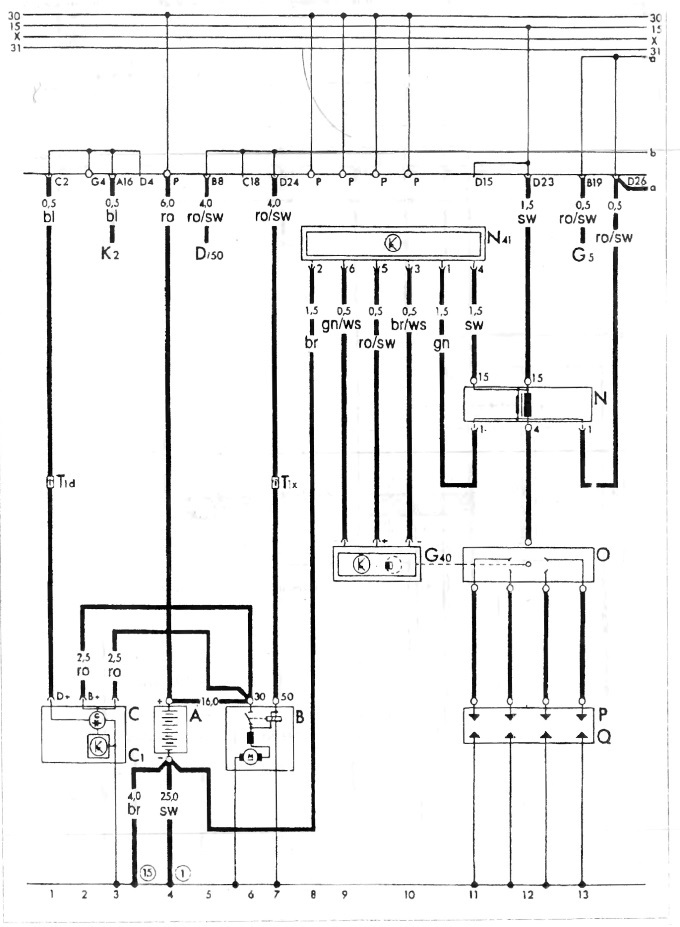

S-37 Wiring diagram for starter, alternator, battery and ignition system. Models 1.1 since 8.85
