Removal and installation of an additional signal of braking

An additional brake light is installed at the top of the rear window. There are 32 LEDs on the bulb holder, which cannot be replaced individually.

Removing

1. Open the back door.

2. Remove an upholstery of a back door.

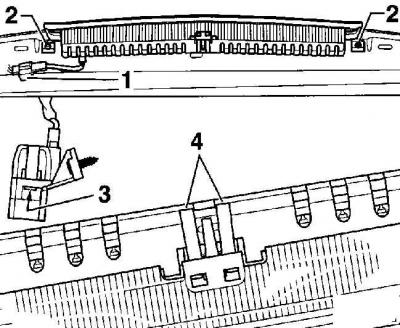

3. Disconnect the electrical connector (1) and unscrew the two screws (2) fastening of an additional lantern of a signal of braking (3 - transverse spring retainer, 4 - longitudinal spring retainer).

4. Loose cross (3) and longitudinal (4) spring clips and remove the bulb holder.

Installation

Installation is made in sequence, return to removal.
