Battery check

The cleanliness of the battery, and especially its top surface, is especially important, since the dirt layer that accumulates on it easily forms electrically conductive paths that lead to battery self-discharge. Cleanliness is important not only for a serviceable battery, but also for a maintenance-free battery, which, despite its name, is not completely maintenance-free.

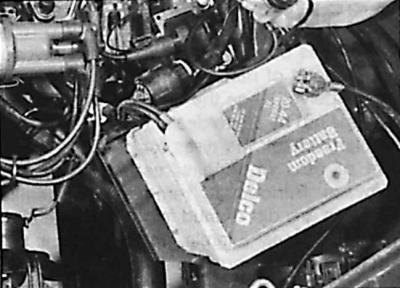

The battery is located on the left front side of the engine compartment.

Order of execution

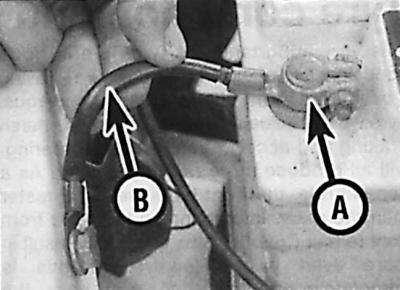

1. Check the tightness of the battery clamps (A) and integrity of wire insulation (IN).

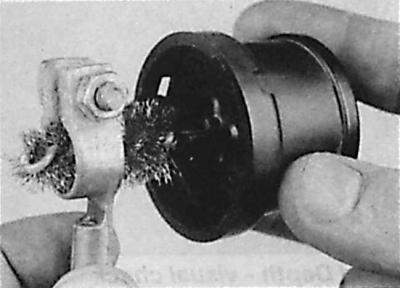

2. If the battery terminals show corrosion in the form of a white loose coating, disconnect the terminals from the battery and clean them with a small wire brush.




3. Using a small wire brush, clean the terminals on the wires connected to the battery. If necessary, rinse the terminals with a solution of baking soda and warm water. Be careful not to let the baking soda solution get into the battery banks.

4. Check that the battery retainer nuts are securely tightened. Do not overtighten the nuts as the battery housing may be damaged.

5.Lubricate the terminals with acid-free Vaseline and anti-corrosion compound before connecting the battery clamps.

6.Periodically (1 time per quarter) check the degree of charge of the battery, for which measure the density of the electrolyte in the banks of the battery.
