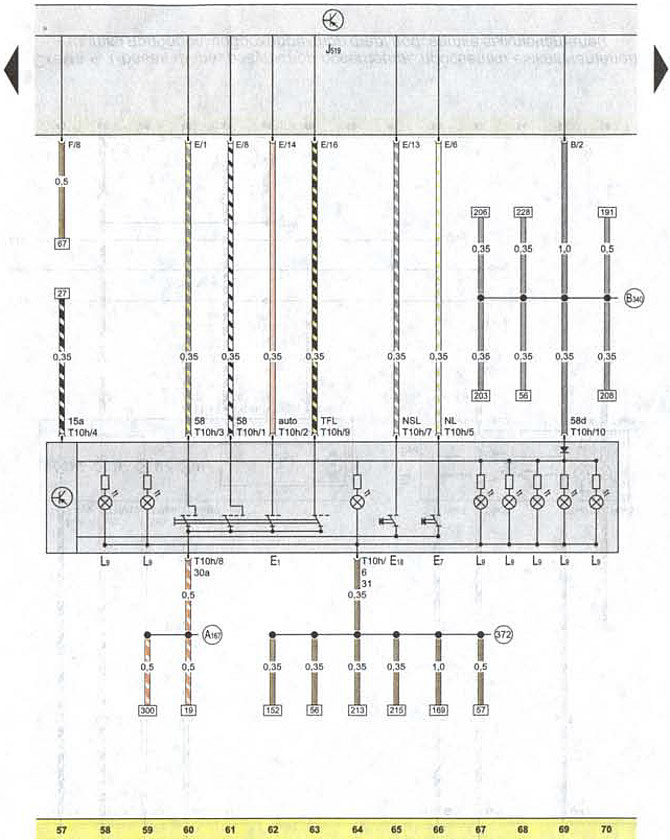

Diagram 6. Light switch, fog light switch, rear fog light switch, light switch illumination lamp:


  • E1 light switch
  • E7 fog light switch
  • E18 rear fog light switch
  • J519 Onboard electrical switching relay
  • L9 light switch light bulb
  • T10h 10-pin plug
  • 372 connection on «mass» (-) 7 in the main wiring harness
  • A167 positive potential connection 3 (terminal 30a) in the wiring harness on the instrument panel
  • B340 connection 1 (terminal 58d) in the main wiring harness
