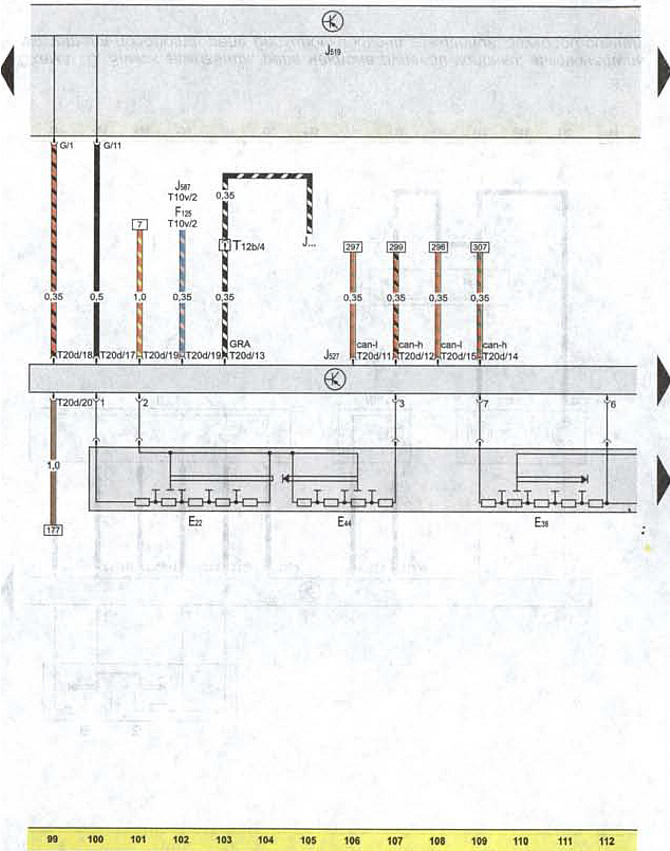

Diagram 8 Steering column adjustment relay, wiper switch, wiper interval switch, wiper interval relay:


  • E22 Intermittent wiper switch
  • E38 glass cleaner interval relay
  • E44 glass washer pump switch
  • F125 multifunction switch
  • J... engine control units
  • J519 Onboard electrical switching relay
  • J527 Steering column adjustment relay
  • J587 automatic transmission control unit relay
  • T10v 10-pin plug under the cover of the automatic transmission control lever
  • T12b Blue 12-pin plug on the left side of the fairing
  • T20d 20-pin plug
