Valve dimensions
| Size | Inlet valve | Exhaust valve |
| Diameter a | 39.5±0.15 mm | 32.9±0.15 mm |
| Diameter b | 5.98±0.007 mm | 5.965±0.007 mm |
| Length with | 93.85 mm | 93.85 mm |
| Angle a | 45° | 45° |

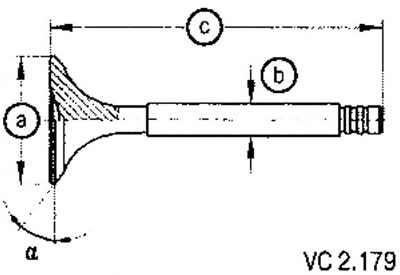

Valve sizes
The valves are not machined. Only lapping of valves is allowed.
